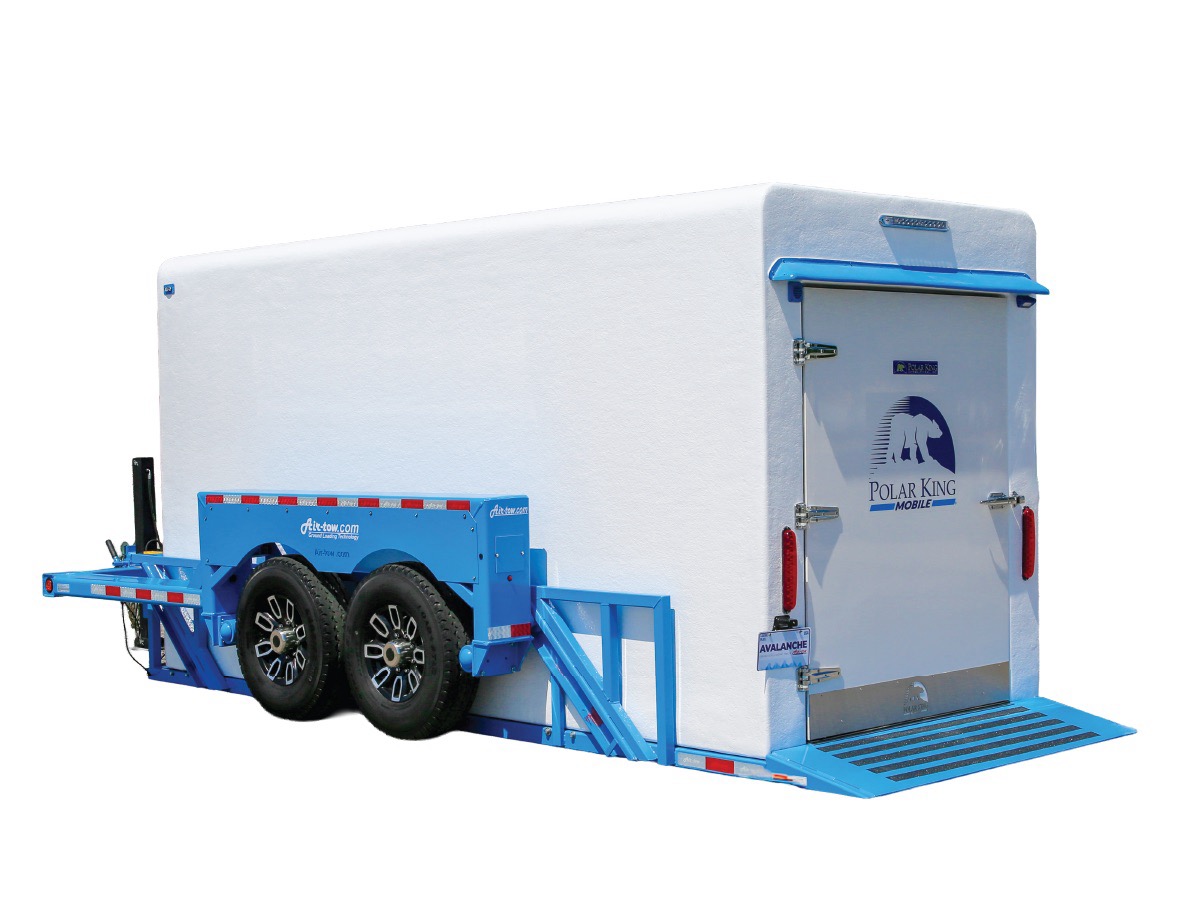

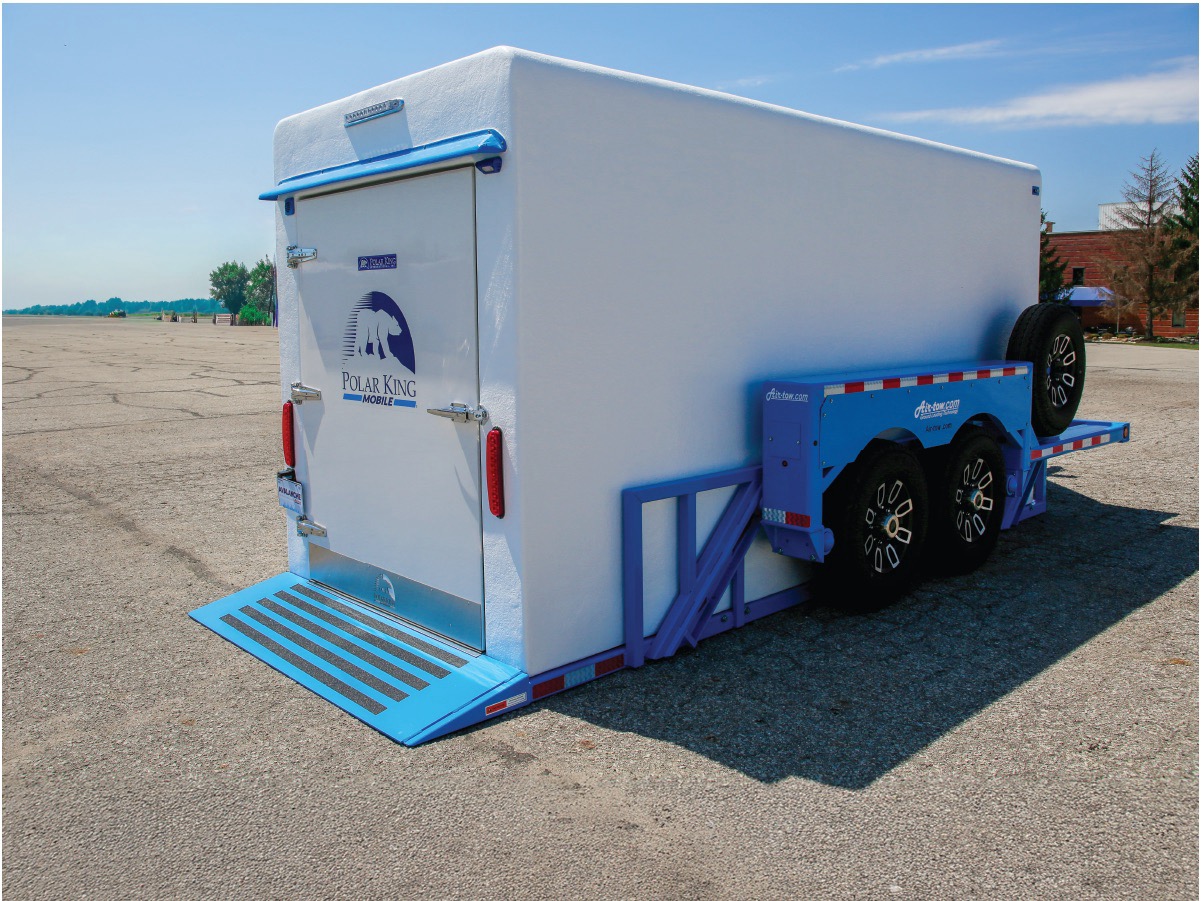

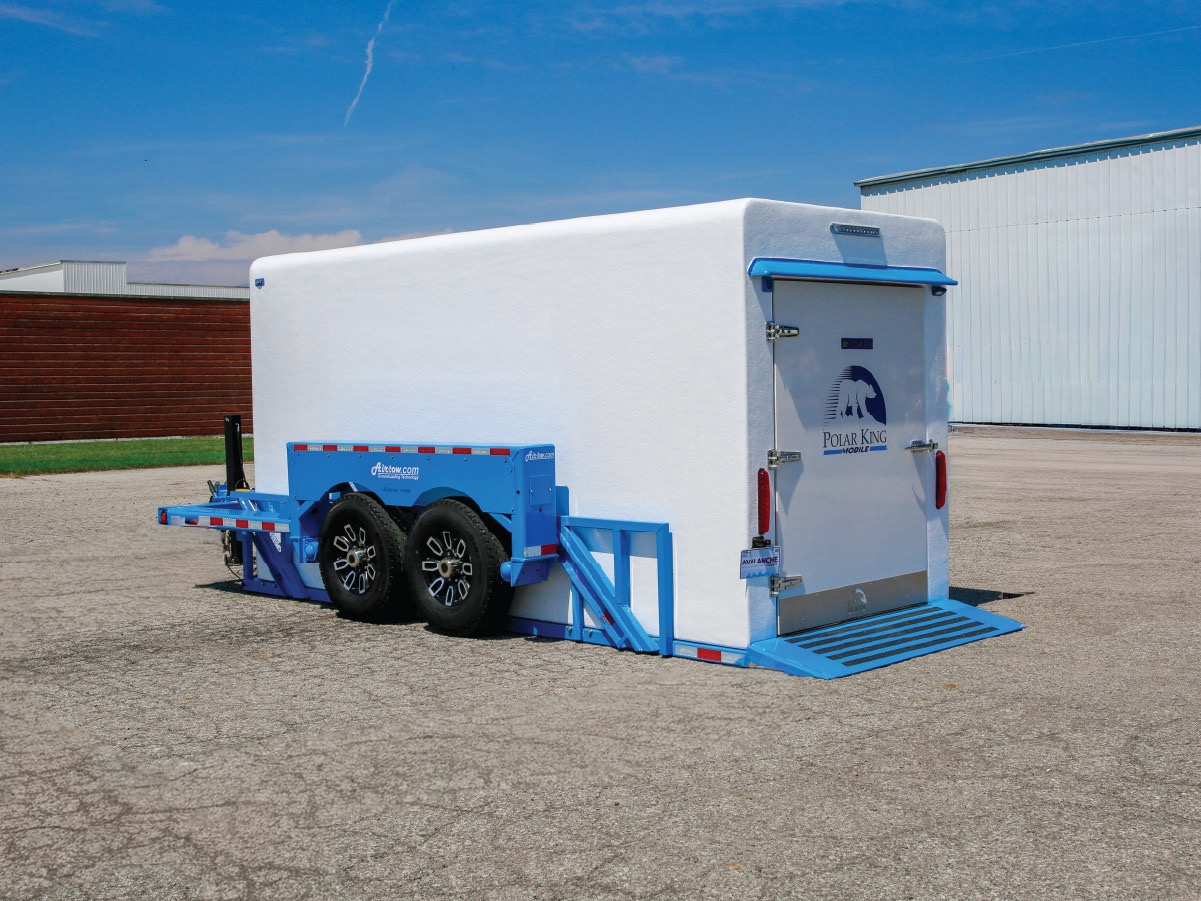

PKM614at

Ground-Level Loading Trailer

Model:Refrigerated
GVWR:17,020 lbs
Capacity:11,000 lbs
Deck Length:16′

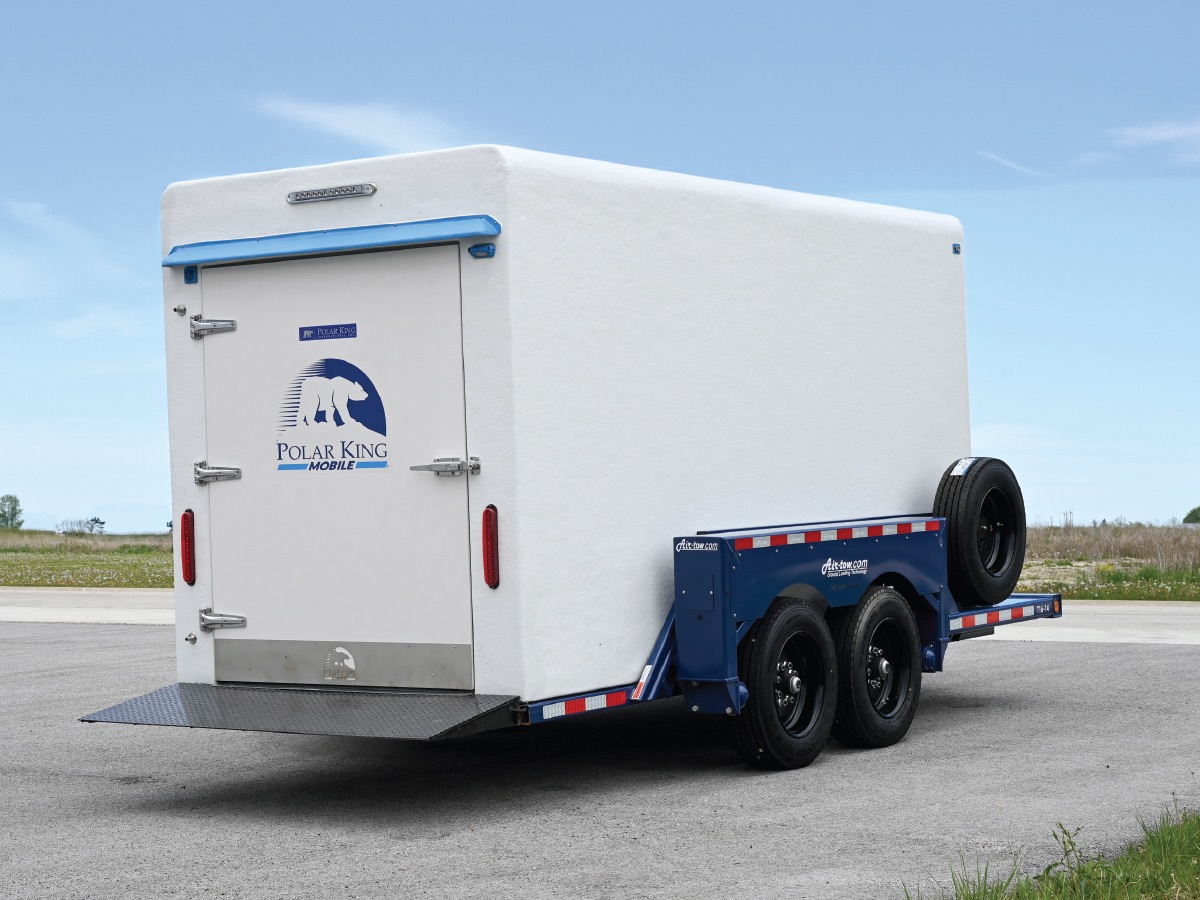

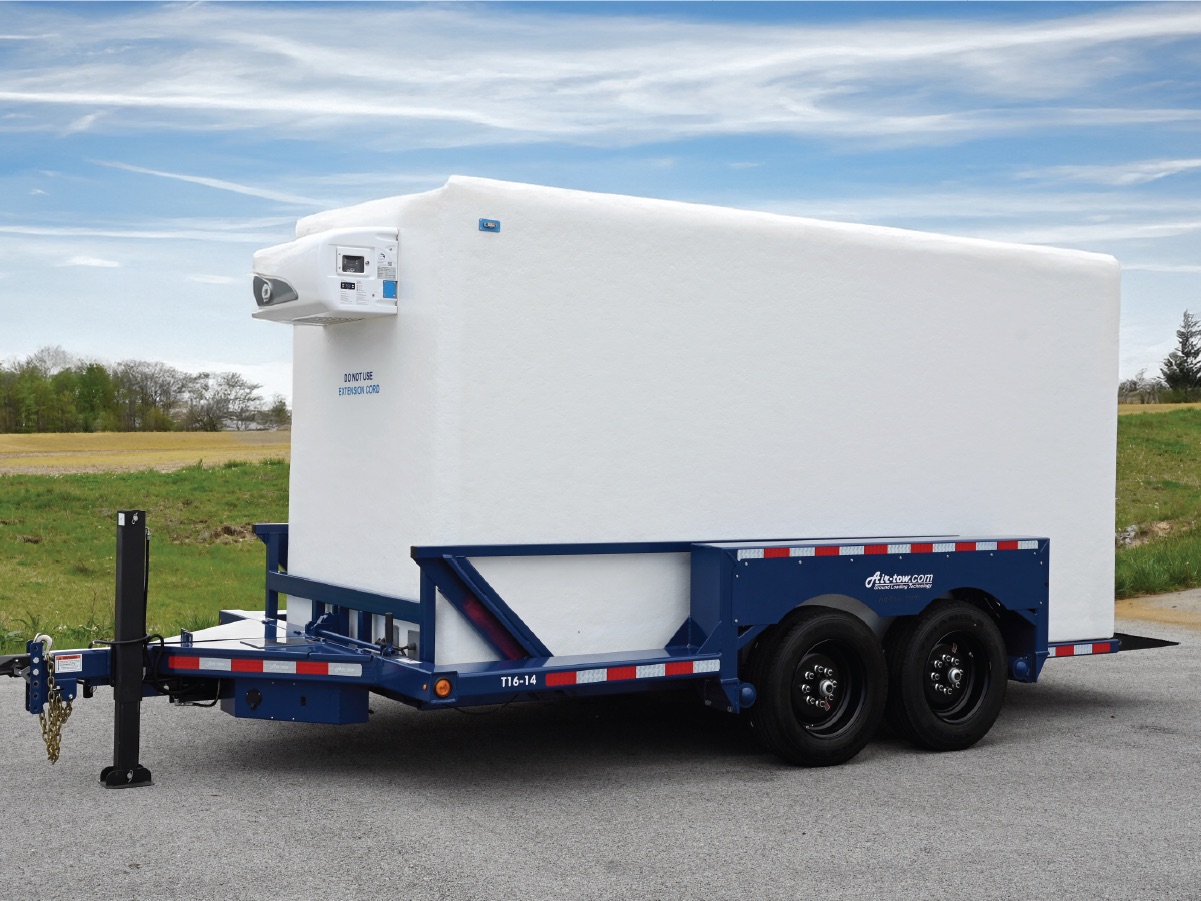

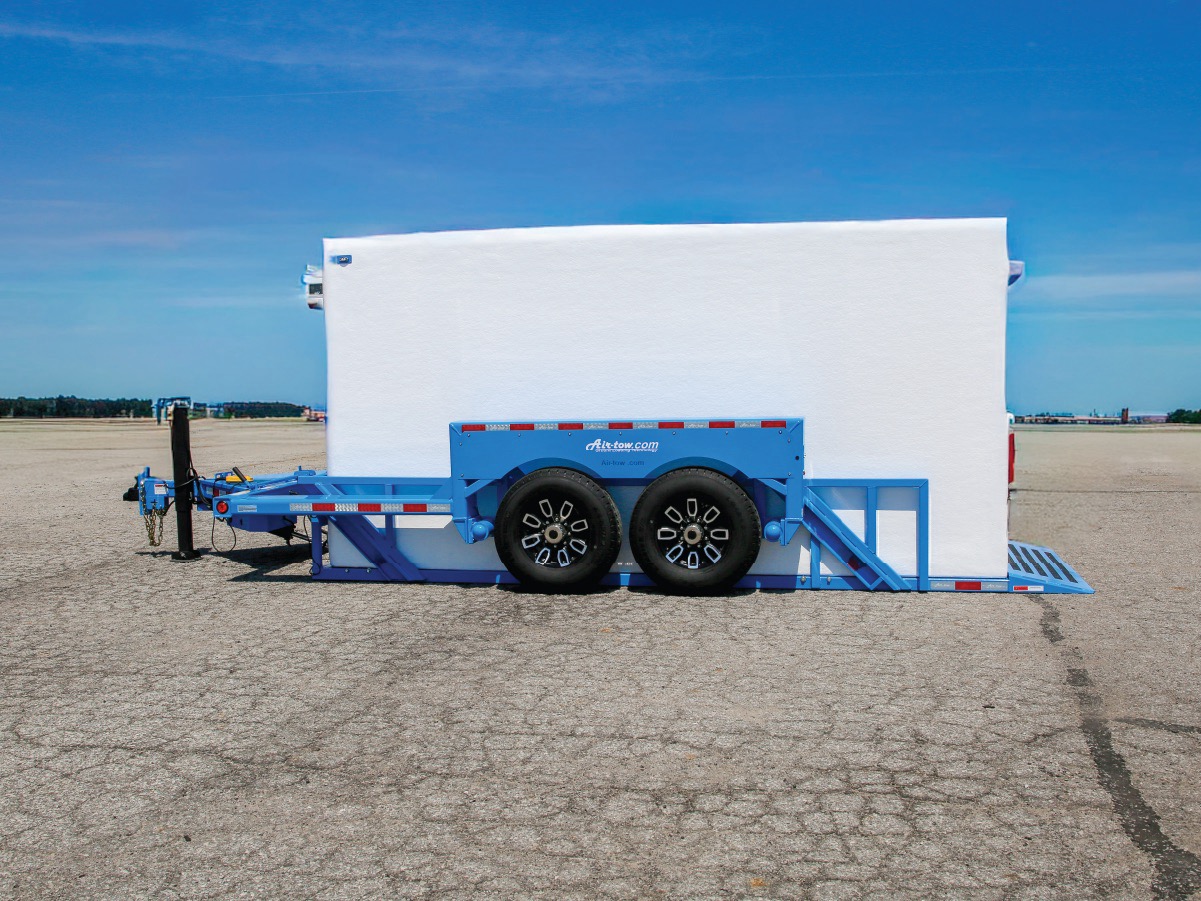

Built for durability, reliability, and unmatched thermal performance, the Polar King Mobile refrigerated trailer combines the precision of the Air-tow ground-level loading trailer with the patented seamless fiberglass Polar King structure and a high-performance GOVI refrigeration system. Engineered for industries where cold storage on-the-go is mission-critical, this unit delivers commercial-grade refrigeration in a mobile, self-contained package.

COMPLETE EFFICIENCY

SPECIFICATIONS

Temperature • 0°F – 50°F
Electrical • 110v – 15amps
Dimensions • Trailer Length: 16′
• Between Fenders: 6′ 3″
Weight • Curb Weight: 6,020lbs
• Payload: 11,000lbs
• GVWR: 17,020lbs
Approvals • NSF/ANSI 7 Standard Certification
• UL Listed Electrical and Refrigeration Components
• Manufactured in an ISO 9001:2015 Certified Factory
Insulation • Polyisocyanurate Foam: 4″ Thick X 2.0 PCF Nominal Density (R-28)
Fiberglass • 100 mil Thick FRP Composite – Exterior
• 80 mil Thick FRP Composite – Interior

TRAILER ACCESSORIES

Exterior
• Seamless Fiberglass
• 2-Part Epoxy Paint

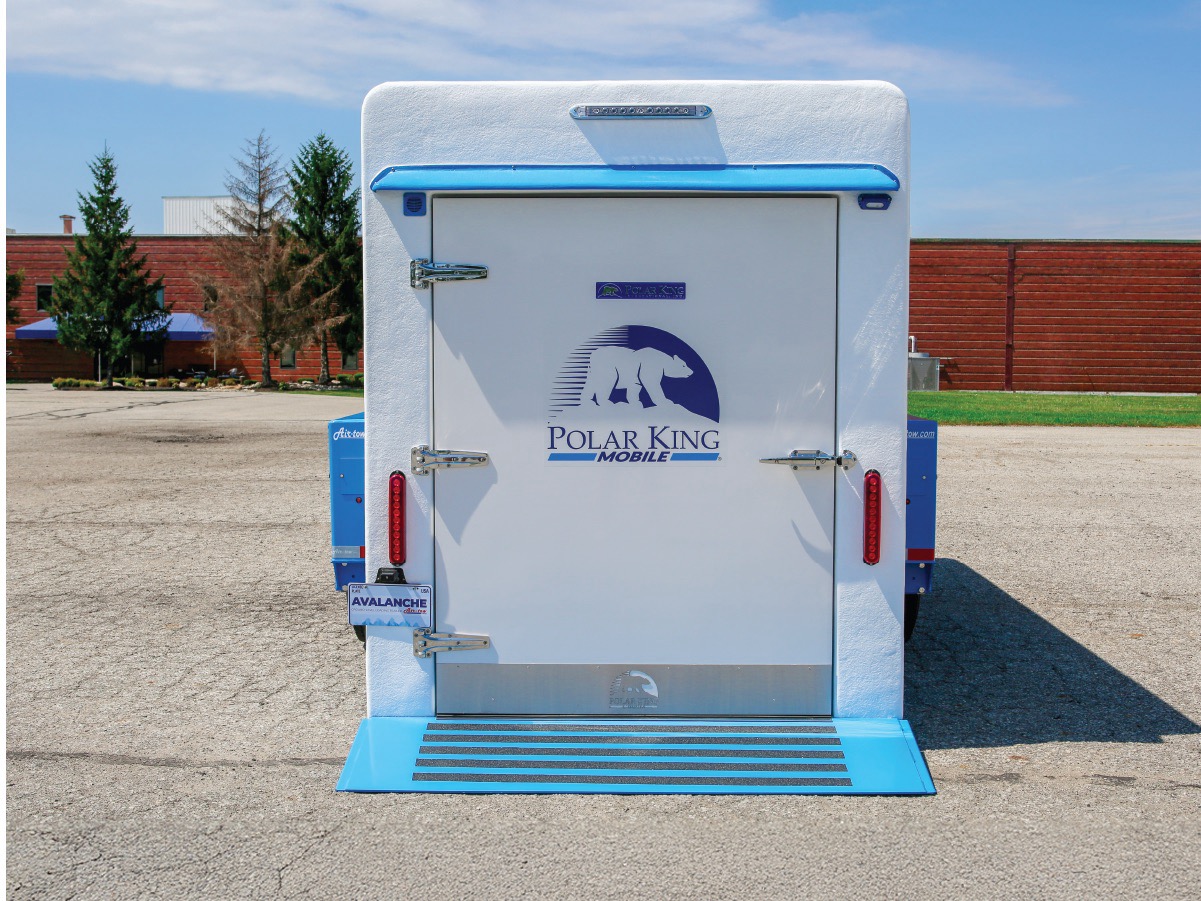

• 54″ Rear Door

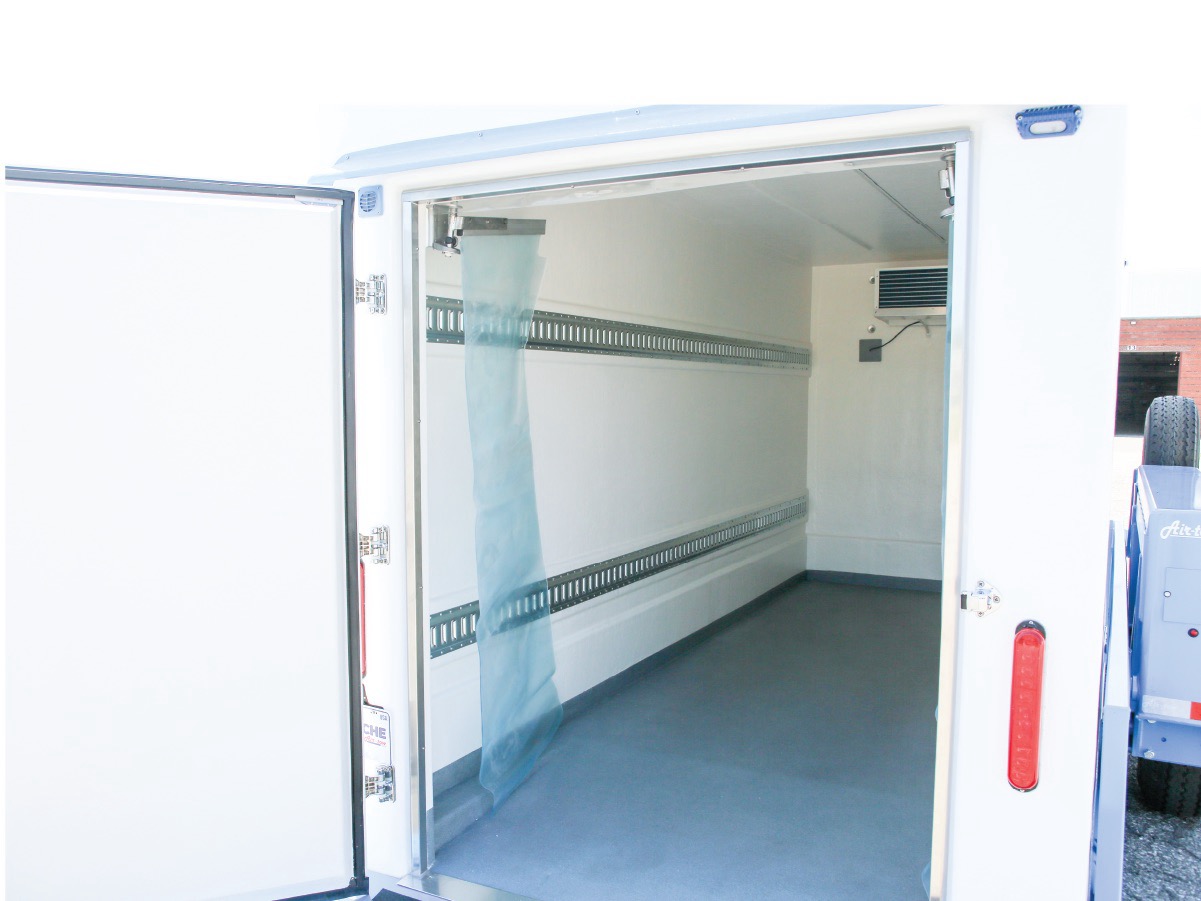

Interior
• 53″ E-Track
• LED Strip Lights
• Reinforced Ceiling for Hanging (2000lbs per side)
• Custom Cart Floor
• Bumper Guards
• Non-skid Floor Finish & Rounded Corners – 29 Grade Sand Aggregate
• Anti-microbial Gelcoat
• Approx. 500 Cubic Feet Capacity

RESOURCES

TRAILER FEATURES

• 16″ -12 Ply Wheels
• Hydraulic Lift Mechanism
• 2 5/16″ Ball
• Tandem Axles
• 12V LED Loading Light w/ Switch
