E-12

Enclosed

E-12
GVWR	13,995 lbs. (9,995 lbs. also available)
Capacity	10,000 lbs.
Weight (varies w/ opt.)	3,995 lbs.
Inside Deck Width	6’3″ (75″)
Inside Deck Length	10’3″
Deck Material	Diamond Steel Plate
Door Height	92″
Outside Ramp Length	18″
Overall Width	102″
Axles	Tandem
Wheels/Tires	16″ – 12 Ply
Brakes (electric-std.)	Electric
Suspension (rubber/air)	Rubber
Lift Mechanism	Hydraulic
Coupler	2 5/16″ Ball
Color	Royal Blue

8 Heavy-Duty D-Rings
Adjustable Chain
Adjustable Coupler
Bright LED Lights
Cam-Lock Door Lock System
Durable Powder Coat Paint
Extra-Wide Deck
Fenderless
Ground-Level Loading
Heavy-Duty Diamond Deck
Heavy-Duty Enclosure w/ Galvanized Z-Bar Studs
Non-Tilting Deck
Remote Control
Rubber or Air Suspension
Swing-Arm Axles

The Best Built Drop-Deck Enclosed Trailer On The Market!

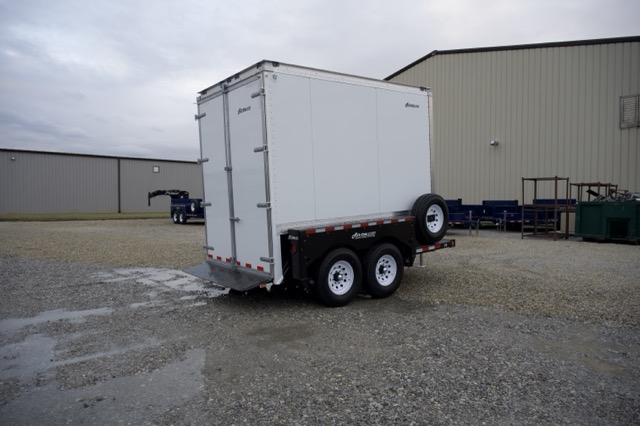

The Enclosed Airtow Trailer models are the first of their kind and built on the rugged Airtow 12’, 14’ or 16’ utility trailers and come with a heavy-duty but lightweight enclosure made with galvanized Z-bars and sturdy siding. Even down to the latch mechanism for the doors, we opted to steer away from the cheap/flimsy traditional flaps used on enclosed trailers and went with the cam-lock system like you see on commercial semi-trucks that join the doors together and to the frame at the top, center, and bottom making it a mobile vault for your equipment or cargo.

E-12
GVWR	13,995 lbs. (9,995 lbs. also available)
Capacity	10,000 lbs.
Weight (varies w/ opt.)	3,995 lbs.
Inside Deck Width	6'3" (75")
Inside Deck Length	10'3"
Deck Material	Diamond Steel Plate
Door Height	92"
Outside Ramp Length	18"
Overall Width	102"
Axles	Tandem
Wheels/Tires	16" - 12 Ply
Brakes (electric-std.)	Electric
Suspension (rubber/air)	Rubber
Lift Mechanism	Hydraulic
Coupler	2 5/16" Ball
Color	Royal Blue
