E-16 XL
Enclosed XL
| E-16 XL | Roll-up Door Standard |
|---|---|
| GVWR | 14,795 lbs. |
| Capacity | 10,000 lbs. |
| Weight (varies w/ opt.) | 4,795 lbs. |
| Inside Deck Width | 6’3″ (75″)(Door Opening 71″) |
| Deck Material | Diamond Steel Plate |
| Inside Deck Length | 15’9″ |
| Door Opening | 90″ H X 71″ W Roll Up |
| Shelf Storage Space | 15″ |
| Overall Width | 102″ |
| Axles | Tandem |
| Wheels/Tires | 16″ – 12 Ply |
| Brakes (electric-std.) | Electric |
| Suspension (rubber/air) | Rubber |
| Lift Mechanism | Hydraulic |
| Coupler | 2 5/16″ Ball |
| Color | Royal Blue |
- 8 Heavy-Duty D-Rings
- Adjustable Chain
- Adjustable Coupler
- Anti-Theft Switch
- Bright LED Lights
- Durable Powder Coat Paint
- Extra-Wide Deck
- Fenderless
- Ground-Level Loading
- Heavy-Duty Diamond Deck
- Heavy-Duty Enclosure w/ Galvanized Z-Bar Studs
- Non-Tilting Deck
- Remote Control
- Rubber or Air Suspension
- Swing-Arm Axles

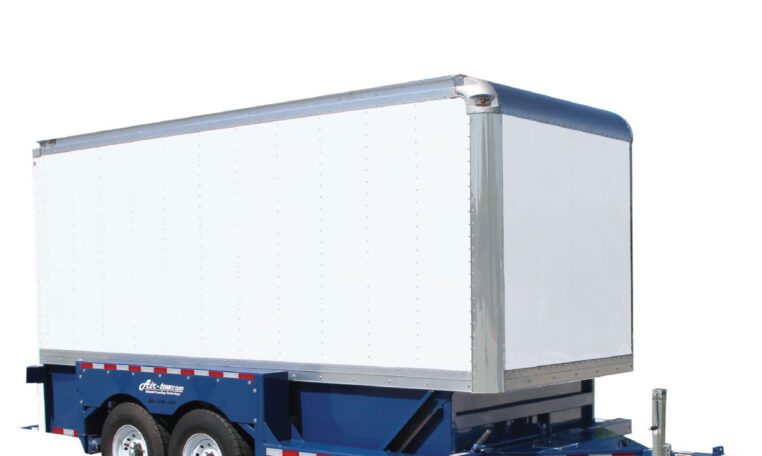

The E-16 XL is the largest enclosed trailer in the Air-tow line and comes preloaded with many features. It has 15'9" of usable deck space and can carry ups to 10,000 lbs. The front-end is extended beyond the regular deck that allows for a 15" shelf and an extra 36 cubic ft. to work with. The aerodynamic design of the front-end not only adds space, but reduces air resistance and increases gas mileage. The back-end is also extended 16" to round out the total storage space at 838 cubic ft. Other standard features that set the E-16 XL apart from the regular E-16 include: a self-locking rollup door, 2 LED interior lights and a 3/8" plywood interior lining. This trailer is also very customizable with options for E-tracks, X-tracks, nose cone and many more accessories. Compare enclosed models below.
Point of Purchase Items Not Available Online
- Customizable X-Track
- E-Track- 28" Above Floor
- Nose Cone
