Moving machine tools requires precision, safety, and the right equipment. From CNC machines and lathes to milling machines and drill presses, these valuable assets are heavy, delicate, and expensive to repair if damaged.
That’s where Air-tow Trailers comes into play.
The Challenge of Moving Machine Tools
Machine tools present a unique combination of challenges:
- They’re dense. A CNC lathe or milling machine can weigh 5,000 to 30,000+ lbs while sitting on a tiny footprint, which makes weight distribution a real problem.
- The center of gravity is often high and off-center, so any tilt during loading or unloading can send the machine over.
- Precision components like spindles, linear rails, and ball screws go out of alignment easily. Even a hard bump during transport can mean an expensive recalibration job.
- Many machines don’t have obvious lift points. Improper rigging can crack castings or bend frames.
- Electronics and coolant systems add a layer of fragility that a purely mechanical load doesn’t have.
Traditional trailers with steep ramps and high deck heights can make this process stressful and risky.
How People Typically Move Machine Tools
- Riggers and specialty movers. Professional machine tool riggers use machinery skates (steel rollers placed under the base), pry bars, and come-alongs to inch equipment across a floor. It’s slow, labor-intensive, and expensive.
- Forklifts. Common in shops, but you need a forklift with enough capacity and the right rigging straps or fork extensions. If the forks aren’t positioned correctly, tipping is a real risk.
- Crane and hoist rigging. For very large equipment, overhead or mobile cranes are used with chains and spreader bars. You need to know the exact lift points or you risk damaging the machine.
- Standard flatbed or tilt-deck trailers. These get the job done but come with the steep ramp problem. Getting a 10,000 lb machine up a 15-degree ramp is where most accidents happen.
- Specialty low-deck trailers like Air-tow. The go-to option for shops doing their own moves.
Ground-Level Loading Eliminates the Biggest Risk
Air-tow’s signature ground-level loading technology completely changes the game.
Instead of relying on steep ramps, the trailer deck lowers flat to the ground. This allows you to:
- Roll heavy machinery on and off with ease
- Eliminate dangerous loading angles
- Reduce the need for forklifts or cranes in many situations
For machine tools with narrow bases or wheels, this stability is critical.
Safer Loading for High-Value Equipment
Machine tools aren’t just heavy, they’re expensive. One wrong move can mean thousands in repairs or lost productivity.
Air-tow Trailers help protect your investment by:
- Keeping the load level during loading and unloading
- Reducing the chance of tipping or shifting
- Allowing for precise positioning of equipment
This is especially important when moving CNC machines or precision equipment that must remain aligned and undamaged.
Smooth Ride with Swing-Arm Suspension
Transporting machine tools over the road introduces another risk: vibration.
Air-tow’s proprietary swing-arm suspension system provides:
- A significantly smoother ride compared to traditional solid axle trailers
- Reduced vibration that can damage sensitive components
- Less wear and tear on both the machine and the trailer

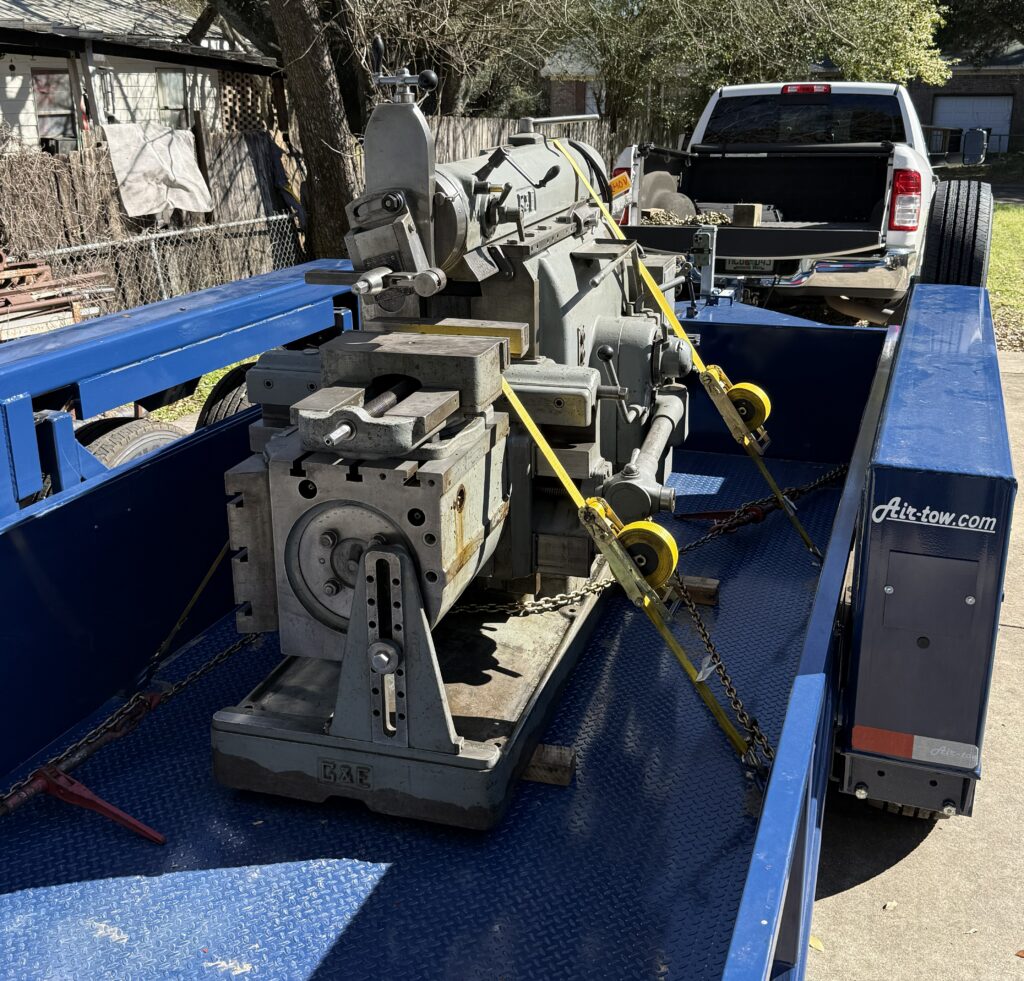

Built-In Tie-Downs
Properly securing machine tools is just as important as loading them.
Air-tow Trailers come equipped with:
- Heavy-duty D-rings
- Optional E-track systems
- Multiple tie-down points for flexible configurations
This ensures your equipment stays locked in place, even during long hauls or sudden stops.
Versatility for Shops and Contractors
Air-tow Trailers are trusted by:
- Machine shops relocating equipment
- Contractors transporting jobsite tools
- Riggers handling specialized moves
- Maintenance teams moving equipment between facilities
Real-World Efficiency
Using an Air-tow trailer doesn’t just improve safety, it saves time and money:
- Faster loading and unloading
- Reduced labor requirements
- Less need for additional equipment
- Lower risk of costly damage

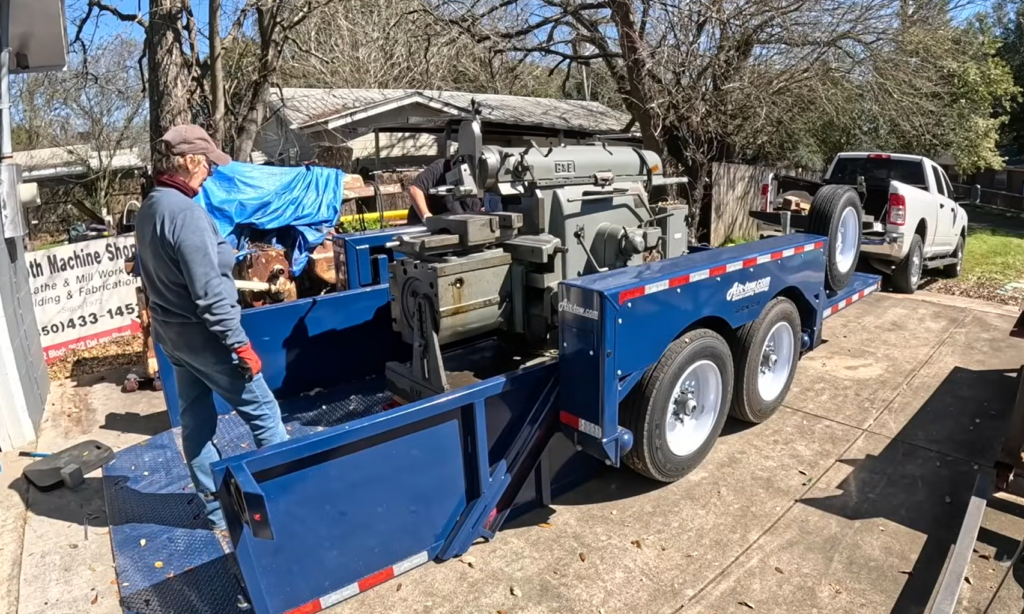

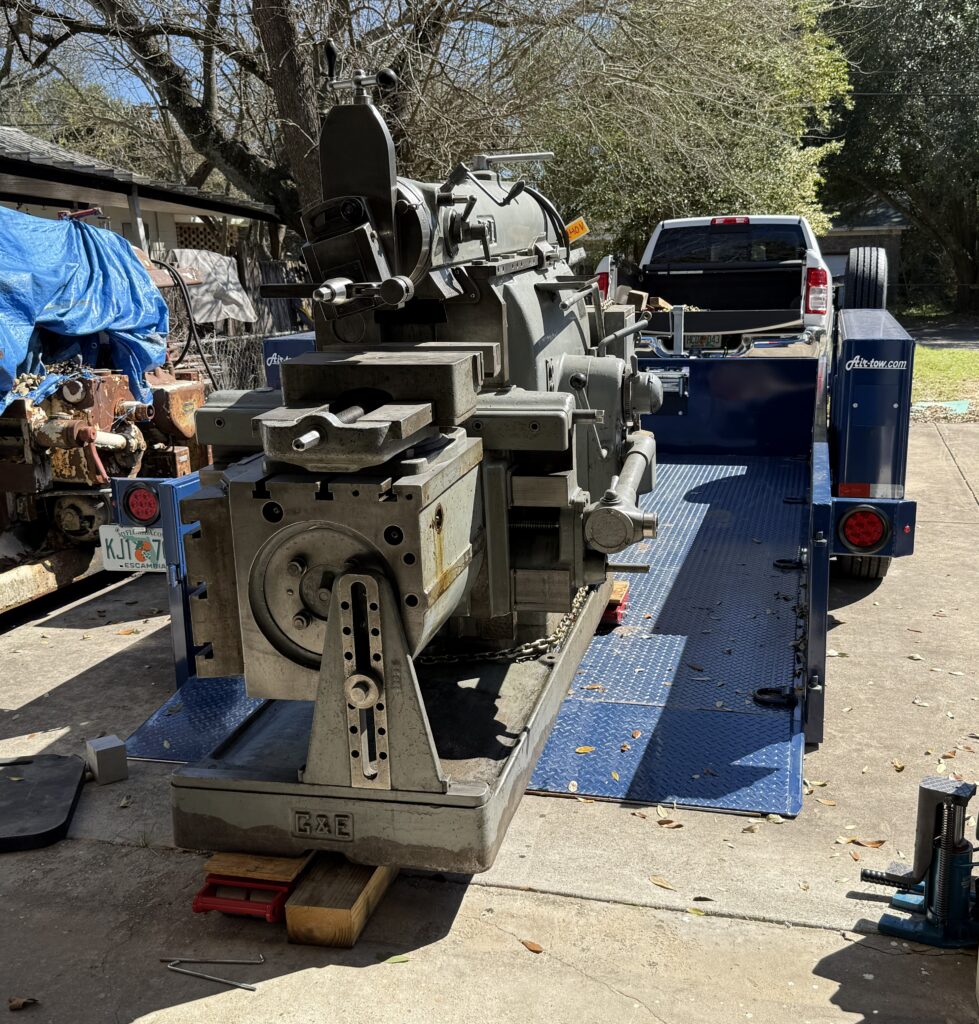

See It in Action: Moving a G&E Shaper
If you want to see just how capable Air-tow Trailers are at moving machine tools, check out how Abom79 puts his trailer to work: Moving the G&E Shaper and Machines For Sale
This real-world example shows how ground-level loading makes handling heavy machine tools safer and more efficient, without the hassle of steep ramps or complex rigging.
The Smarter Way to Move Machine Tools
When it comes to transporting machine tools, the right trailer makes all the difference. Air-tow’s ground-level loading, smooth ride, and secure tie-down options provide a safer, more efficient solution than traditional trailers.
If you’re looking to protect your equipment and simplify your workflow, Air-tow is built for the job.
Ready to move your equipment the smarter way?
Contact us or find your local Air-tow dealer to learn more about available models or to schedule a demo.
